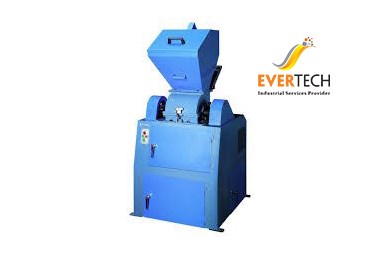

SDHD150 Hammer Crusher

Application:

SDHD150 Hammer Crusher & Divider can be used to crush sample into testing or analytical size. It is widely applied in power industry, coal industry, chemical processing, metallurgical industry, engineering material, and geological industry, etc.
Nhận báo giá Hotline Email PDF
×

Vui lòng để lại thông tin của bạn trước khi tải xuống sản phẩm PDF.

Lưu ý: Vui lòng đảm bảo bạn đã nhập đúng địa chỉ E-mail. Chúng tôi sẽ gửi cho bạn thông tin liên quan và báo giá sản phẩm thường xuyên.

SDHD150 Hammer Crusher & Divider can be used to crush sample into testing or analytical size. It is widely applied in power industry, coal industry, chemical processing, metallurgical industry, engineering material, and geological industry, etc.

  • Technology: hammer
  • Mobility: stationary
  • Capacity: Min.: 1,200 kg/h (2,646 lb/h) Max.: 1,800 kg/h (3,968 lb/h)

Highlights
Creative sealed type crushing chamber, few loss of moisture, uniform discharge particle.
Sample reserving case and sample discarding case are separate.
The cleaning door is equipped with a transparent view window.
Anti-block meahcnism of feeding hopper eliminate failure due to wet sample.
Removable sieve plate.
Height of the feeding mouth is 1.44m, lower than traditional design.
Sample can be collected at both sides of the sample discarding case.
Reserved port for dust removing.

Specification
Feed Size :
≤150mm
Discharge Size: ≤3 ≤6 ≤13mm2.36/4.75/11.2mm optional
Moisture : 12%
Productivity : 1200-1800kg/h
Sampling Methodv Primary crushing and secondary division
Division Rate :
1:8 or 1:16adjustable )
Power Requirement : 380V
Max Power : 4.4kWv
Weight : 350kg
Dimension : 940*877*1450mm
