Multivariable Type: option code /MV
Saturated Steam Measurement Mechanism
A steam table provides data on the temperature, pressure and density of steam and is provided by a certification body such as the ASME. The saturated steam curve shows the steam saturation point for each pressure/temperature level. The digitalYEWFLO converter calculates the mass flowrate using the density figure from the steam table. With its Spectral Signal Processing system, the digitalYEWFLO is able to accurately measure fluctuations in temperature.
- With superheated steam, density is calculated as a fixed pressure value that includes the superheated temperature value.
With the totalization function, energy consumption data collected over a period of time can be stored in memory and used to devise measures for reducing energy consumption.
Sleep better knowing that your Yokogawa digitalYEWFLO vortex meters have the durability and reliability that you can count on.
Durability through simple design and construction.
Provides diagnostic messages on high vibration environments, excessive flow fluctuations, and clogging or plugging in the area around the shedder bar. Analysis of the process allows true condition-based maintenance.
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.

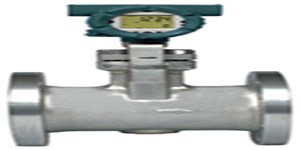

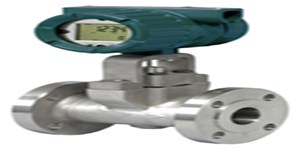

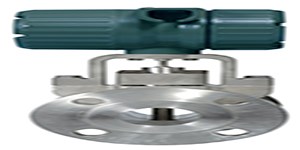

| Standard Type | Reduced Bore Type | Multi-Variable Type | ||
|---|---|---|---|---|
| Model | Model DY Vortex Flow meter (Integral Type, Remote Type) Model DYA Vortex Flow Converter (Remote Type) (Option for High Process Temperature Version: /HT, Option for Cryogenic Version: /LT) |
Option: /R1, /R2 1 size down: /R1 2 size down: /R2 (Option for High Process Temperature Version: /HT) |
Option: /MV | |
| Fluid to be Measured | Liquid, Gas, Steam (Avoid Multiphase Flow and Sticky Fluids) | |||
| Nominal Size | Wafer | 15 to 100 mm | N/A | 25 to 100 mm |
| Flange | 15 to 400 mm | R1: 25 to 200 mm (Detector: 15 to 150 mm) R2: 40 to 200 mm (Detector: 15 to 100 mm) |
25 to 200 mm (Special: 250 to 300 mm) |
|
| Accuracy | Liquid | ±0.75% of Reading (Depends on Reynolds number) |
±1.0% of Reading (Depends on Reynolds number) |
±0.75% of Reading (Depends on Reynolds number) |
| Gas Steam |
±1.0% of Reading (Depends on flow velocity) |
|||
| Output Signal | Dual Output (Both analog and pulse output available) Communication: HART 5/HART 7, BRAIN, FOUNDATION™ fieldbus |
|||
| Process Temperature | -29 to 250 deg C -29 to 450 deg C (/HT) -196 to 100 deg C (/LT) |
-29 to 250 deg C -29 to 450 deg C (/HT) |
-29 to 250 deg C -29 to 400 deg C (/HT) |
|
| Process Pressure | -0.1MPa (-1kg/cm2) to flange rating | |||
| Ambient Temperature | -29 to 85 deg C (Depends on model type) | |||
| Ambient Humidity | 5 to 100% RH (No Condensation) | |||
| Mounting | Flange or Wafer Type JIS 10/20/40K ANSI 150/300/600/900 (Special: 1500) DIN PN 10/16/25/40/60/100/160 |
Flange Type only JIS 10/20K ANSI 150/300 |
Flange or Wafer Type JIS 10/20/40K ANSI 150/300/600/900 DIN PN 10/16/25/40 |
|
| Electrical Connection | JIS G1/2 Female, ANSI 1/2NPT Female, ISO M20×1.5 Female | |||
| Explosion Protected Type | TIIS Ex d, FM Ex d/Ex ia, ATEX Ex d/Ex ia, CSA Ex d/Ex ia, IECEx Ex d, SAA Ex ia |
|||
| Material | Body: Stainless steel(Special: Hastelloy, Carbon steel) Shedder Bar: Duplex stainless steel(Option: Stainless steel, Hastelloy) Gasket: Stainless steel with Teflon coating (/HT: with Silver plating) Converter housing, case and cover: Aluminum alloy(Option: Stainless steel) |
|||
The FieldMate family effectively supports the initial setup, daily maintenance, and troubleshooting for the maximum utilization of intelligent field instruments. FieldMate is a flag ship product of the FieldMate family which is a PC based full functional and full field protocol configuration tool. The YHC5150X FieldMate Handheld Communicator is the latest HART Communicator from Yokogawa.
