The digital YEWFLO vortex flow meter combines the field proven sensor and body assembly used in more than 450,000 units installed worldwide with a unique and powerful combination of digital technology that includes spectral signal processing (SSP), a Yokogawa innovation. The digitalYEWFLO vortex flow meter is accurate and stable, even in harsh process conditions, and has a highly reliable and robust design that delivers improvements in plant efficiency and reduced operating costs
Sleep better knowing that your Yokogawa digitalYEWFLO vortex meters have the durability and reliability that you can count on.

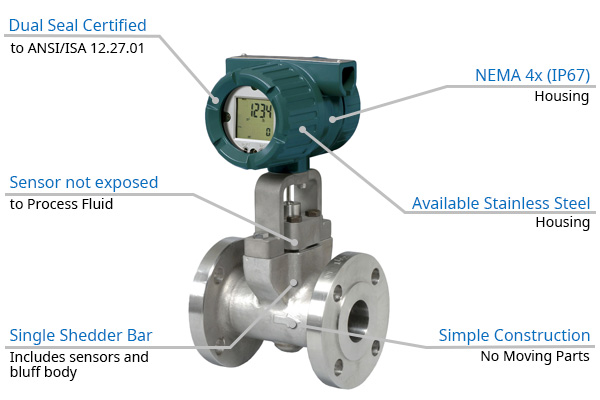

Durability
Durability through simple design and construction.
Advanced Self-diagnostics
Provides diagnostic messages on high vibration environments, excessive flow fluctuations, and clogging or plugging in the area around the shedder bar. Analysis of the process allows true condition-based maintenance.
Combining Noise Reduction and Spectral Signal Processing (SSP) to provide an accurate and stable measurement.
Noise Reduction
Noise caused by strong piping vibration may affect the accuracy of the vortex frequency detection. The two piezoelectric elements installed in the digital YEWFLO are of a polarized structure, so they do not detect vibration in the flow or vertical directions. The noise in the lift direction vibration is reduced by adjusting the outputs of the piezoelectric elements.
Spectral Signal Processing (SSP)
In the past, some process conditions required manual adjustment to compensate for piping vibration noise. But, Yokogawa's digitalYEWFLO Spectral Signal Processing (SSP) analyzes the detected frequency and allows only vortex frequencies to pass through the segmented band-pass-filter, thereby accurately identifying and eliminating noise. The SSP function only outputs the appropriate vortex frequencies, even under fluctuating flow rate conditions.
Industry Standard Communication Protocols

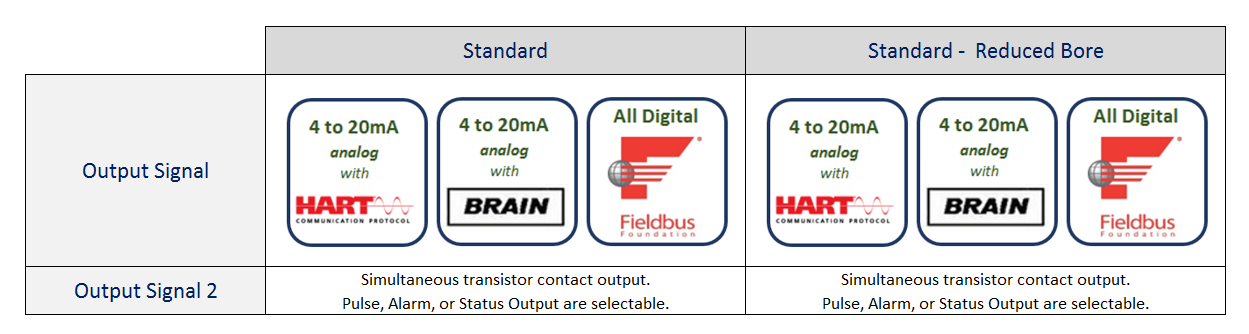

Yokogawa digitalYEWFLO has the standard communication protocols used. Featuring BRAIN protocol, HART 5 protocol, HART 7 protocol, or FOUNDATION Fieldbus, the digitalYEWFLO can integrate quickly into your existing system.
Standard

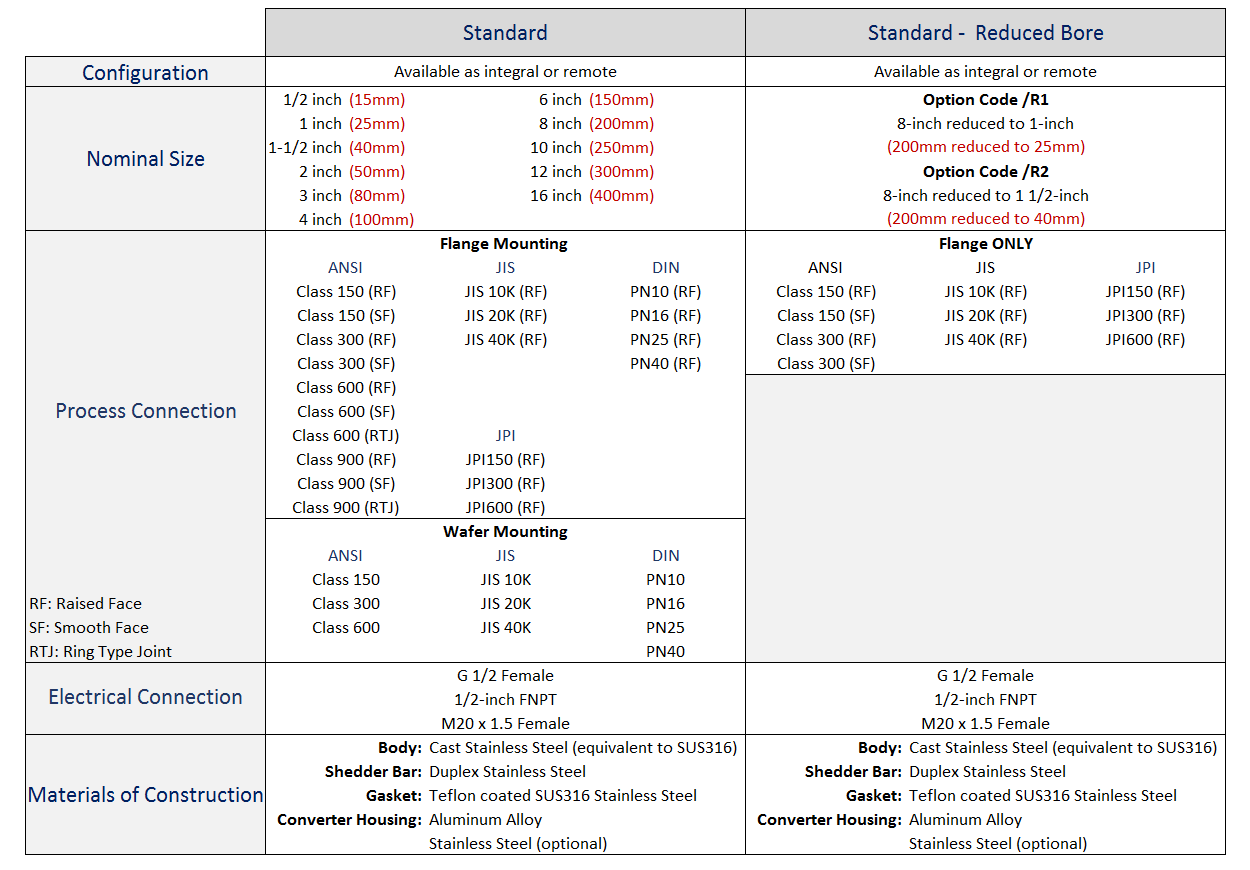

Standard digitalYEWFLO vortex flow meters are available in a number of different sizes ranging from 1/2-inch to 16-inch. Available with wafer style or flanged style (ANSI Class 150 to ANSI Class 900). digitalYEWFLO has the size you need.
Reduced Bore

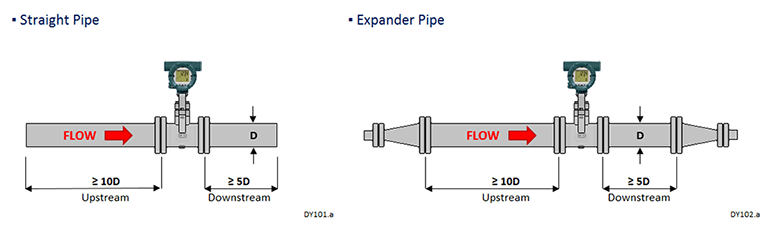

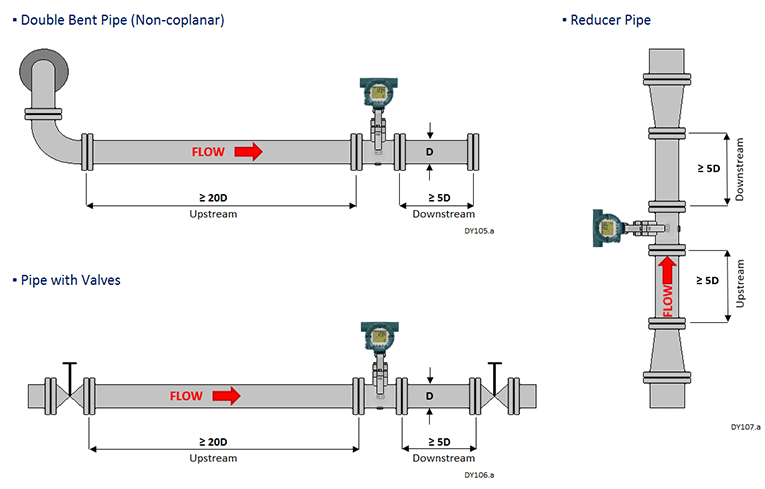

The Reduced Bore digitalYEWFLO meter was designed to capture the low flow applications without the need to install concentric reducers. It is very common in vortex meter applications to use a smaller meter compared to the line size. This requires the installation of concentric reducers along with the correct amount of upstream and downstream meter run to ensure a proper flow profile into the meter. By utilizing built-in concentric reducers, we can reduce the meter ID by either one or two meter sizes. This feature allows you to install a line size meter, reduce installation cost, and measure your low flows.
Remote
Remote electronics allows you to locate the indicator away from the process measurement point and to more convent visible area. Remote digitalYEWFLO vortex flow meters are available in a number of different sizes ranging from 1/2-inch to 16-inch. Available with wafer style or flanged style (ANSI Class 150 to ANSI Class 900). digitalYEWFLO has the size you need.

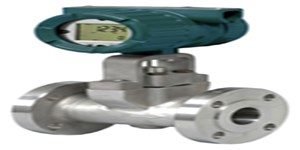

The picture left shows a Stainless Steel housing. The SS housing is available option on all Yokogawa digitalYEWFLO Vortex Flow Meters.
High-Pressure

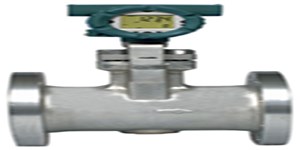

High-Pressure digitalYEWFLO is designed to take your toughest high-pressure steam and water applications. The High-Pressure digitalYEWFLO is available with ANSI 900#, 1500#, and 2500# flange connections. Quality, dependability, and now pressure ratings to 5000 psi!
Dual Sensor
When your application requires the highest safeguards for personnel and process, the digitalYEWFLO dual sensor design offers total redundancy and is available in a broad range of sizes and pressure ratings.
High-Purity
High-Purity digitalYEWFLO meets the standards set forth in ASTM G93-6 Level B and ANSI B40.1 Level IV. Electropolished to a 15Ra or better finish and double bagged, the High-Purity digitalYEWFLO accurately measures critical high purity steam, water, and gas applications.
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
