Plants run better with Yokogawa liquid level transmitters.

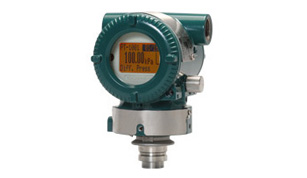

At it's heart, Yokogawa's Liquid Level Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.
Digital Performance
Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.
Poor Performance = Lost Money
Accuracy Under All Operating Conditions

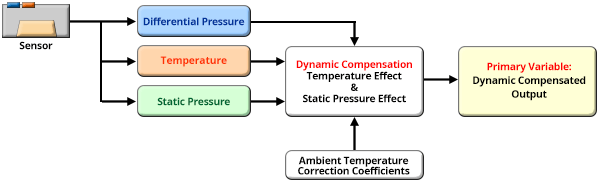

Yokogawa's DPharp sensor has the ability to measure the differential pressure (DP), static pressure (SP), and sensor temperature from a single sensor. Giving these three pieces of process data, Yokogawa's transmitter can compensate the DP measurement for Temperature Effect and Static Pressure Effect in real time. This is referred to as Dynamic Compensation and improves the DP measurement accuracy.
Competitor's analog sensors can only measure DP and Sensor temperature. So, theirs can compensate for temperature Effect; but, since the SP measurement is missing, it cannot compensate for Static Pressure Effects.
Poor Performance = Lost Money
More Information

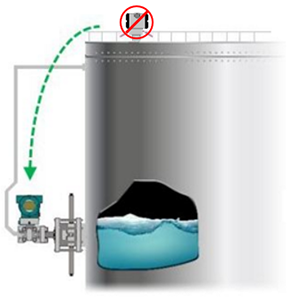

Yokogawa's DPharp sensor can supply you greater insight into your process. One transmitter can supply your control system with Tank Level (Primary Variable), Blanket Pressure (Secondary Variable), and Sensor Temperature (Third Variable) - no need for multiple devices.
More Information = Found Money
Signal Characterization
Signal characterization is a versatile function available on all Yokogawa pressure transmitters. The function is used to compensate the analog 4 to 20 mA output signal for non-linear applications. Such applications include tank strapping or flow measurements; but, it can be used in any application where the relationship between the pressure input and the desired output signal are known. This feature can use up to 10-points.
Greater Flexibility = Found Money
Local Indicator

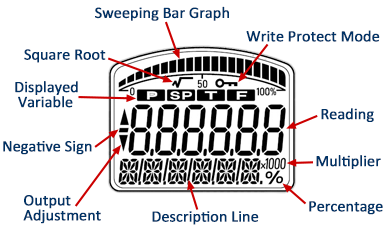

All of the process variable's measured by Yokogawa's transmitter can be displayed on the easy to read local indicator. The indicator can display any of the variables measured (DP, SP, Capsule temperature); alarm codes with short text; and a sweeping bar graph to give a graphical representation of the process. Fully programmable, the indicator is customizable for your needs. Unlike competitor's transmitters, the indicator is not driven off the 4 to 20 mA analog signal, but, exist on a separate circuit. This allow the display to operate independently from the output signal, so it can indicate information that maybe more useful at the transmitter location.
More information = Found Money
Standard Diagnostics
Yokogawa's transmitter has 40 self-diagnostic checks to ensure that everything is running smoothly within the transmitter. But, all transmitters on the market have a level self-diagnostic checks. However, Yokogawa has two that are not offered by competitors. First, the transmitter features a patented Back-check Technology that reverse checks all calculations in real-time. Second, the DPharp sensor is an active sensor. This means that the sensor is constantly supplying a signal even when the process has not changed. If the signal is lost from the sensor, the transmitter knows there is an issue. Competitor's analog sensors are passive. They do not supply a continual signal, so, is the sensor still working when there is no signal?
Good Diagnostics = Less Surprises
Rugged Construction

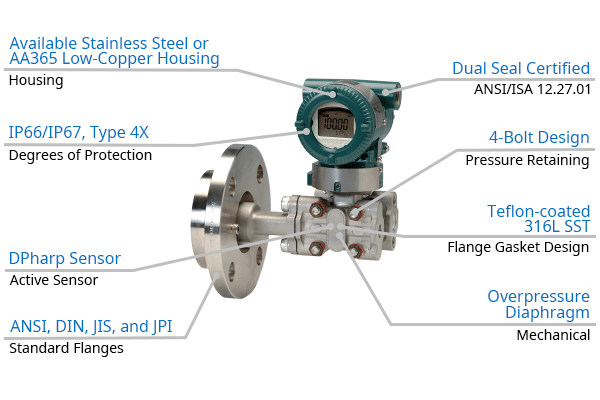

Ruggedly constructed differential pressure transmitter can help your plant reduce failures. Yokogawa pressure transmitters have construction features that are designed to allow it to outlive your plant. Four-bolt pressure retaining design, Active DPharp sensor, Teflon coated 316L stainless steel flange gasket, and dual seal certified to ANSI/ISA 12.27.01 - all design features to extend the life of the transmitter.
Note: For conformance to NACE MR0175/MR0103, please refer to General Specifications of each model.
Ruggedness = Reliability
Over-pressure Protection
Yokogawa's DPharp pressure sensor has over-pressure protection from the simple robust design of the sensor itself. But, Yokogawa goes a step further and adds a mechanical system within the capsule to protect the transmitter from over pressure events. These events could be caused by anything from unexpected process surges to improperly sequenced manifolds.
Ruggedness = Reliability
Independent Verification
The Yokogawa pressure transmitter series' performance and reliability has been verified by independent third parties from around the world.
Functional Safety
All Yokogawa pressure transmitters are designed and certified to IEC61508:2010 Parts 1 through 7 and IEC61511:2004 Parts 1 through 3. They are certified for single transmitter use in SIL 2 safety applications and dual transmitter use in SIL 3 safety applications with no special option required. With Yokogawa's transmitters, no longer will you have to maintain two seperate inventories - one for production applications and one for safety applications.
Functional Safety = Reliability
Active Sensor Technology
The DPharp sensor is an active sensor. This means that the sensor is constantly supplying a signal even when the process has not changed. If the signal is lost from the sensor, the transmitter knows there is an issue. Competitor's analog sensors are passive. They do not supply a continual signal, so is the sensor still working when there is no signal? An active sensor is inherently safe.
Inherently Safe = Reliability
Patented Self-check System

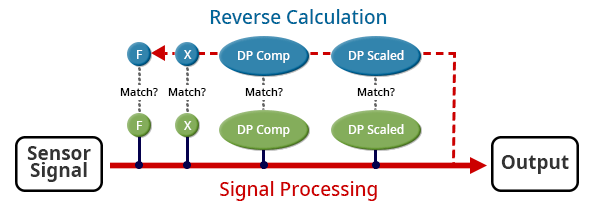

Yokogawa's pressure transmitters as a patented real-time reverse check of the signal to ensure all calculations are preformed correctly. This system ensures that the transmitter is converting the signal from the sensor into the analog signal and digital protocol correctly.
Inherently Safe = Reliability
Yokogawa's DPharp pressure transmitters offer long-term stability and diagnostics to make your maintenance routine easy.
Extended Calibration Intervals

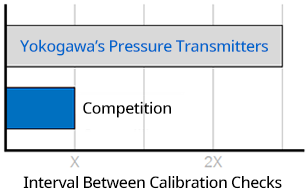

Yokogawa's pressure transmitters have a long-term stability under all operational conditions. As you gain experience with these transmitters, you will be able to extend the time between calibration checks.
Quicker Maintenance = Less Downtime
Multiple Communication Options
Yokogawa offers several platforms to communicate to your transmitter.

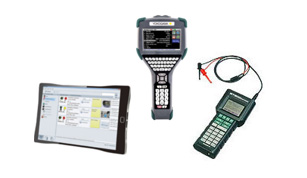

FieldMate is a PC based communication platform that can communicate with your transmitter and manage your entire instrument inventory.
FieldMate HHC is a traditional hand-held platform that allows you to take that information into the field.
Forgot your HHC? No problem. The LPS feature on the transmitter allows you to update 9 parameters without the use of an HHC.
Quicker Maintenance = Less Downtime
Simple Troubleshooting

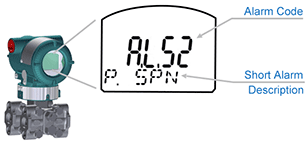

When your transmitter is 'alarming', you do not have the time to look for the manuals and go through them trying to figure out what is wrong; you need to get the transmitter up and operating again as quick as possible. Yokogawa's pressure transmitters have a simple description of the error code available on the local display. This simple description may help you correct the problem and get back to making product quickly. If you need more help, the manual does have a full description of all codes and suggest corrective actions.
Quicker Maintenance = Less Downtime
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
|
Measurement Types |
|
|
Primary Variable |
Liquid Level (Differential Pressure) |
|
Secondary Variable |
Static Pressure |
|
Reference Accuracy |
|
|
Primary Variable |
±0.075% of Span |
|
Secondary Variable |
±0.5% of Span |
|
Response Time |
|
|
Primary Variable |
120 msec |
|
Secondary Variable |
360 msec |
|
Long Term Stability |
|
|
Primary Variable |
±0.1% of URL per 12 months (DP) |
|
Rangeability |
|
|
Primary Variable |
100:1 |
|
Specification Conformance |
|
|
EJA-E Series |
±3σ |
Capsule Ranges
|
Capsule |
Span |
Range |
Maximum Pressure Limit |
||
|
Minimum |
Maximum |
Minimum |
Maximum |
||
|
M |
4.0 inH2O |
400.0 inH2O |
-400.0 inH2O |
+400.0 inH2O |
per flange rating |
|
H |
20.0 inH2O |
2,000.0 inH2O |
-2,000.0 inH2O |
+2,000.0 inH2O |
|
Process Connections
|
|
Process connection Type |
Size |
Extension |
Flange |
|
|
Flush Type |
3-inch |
N/A |
JIS 10K, 20K |
|
ANSI 150#, 300# |
||||
|
JPI Class 150, 300 |
||||
|
DIN PN10/16, 25/40 |
||||
|
|
Extended Type |
4-inch |
2-inch |
JIS 10K, 20K |
|
ANSI 150#, 300# |
||||
|
JPI Class 150, 300 |
||||
|
DIN PN10/16, 25/40 |
Flushing Connection Ring

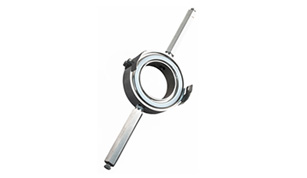

A flushing ring a round device that is place between the diaphragm seal and the process connection. The device has two 1/4-inch ports that can be used to run a flushing solution across the face the seal to clean it. If you need a different size port, Yokogawa also offers Flushing Rings supplied by a global partner WIKA.
Communicators
Yokogawa manufactures a communicator for your needs. Yokogawa communicators are available for BRAIN Protocol, HART Protocol, FOUNDATION Fieldbus, PROFIBUS PA, ISA100, or Modbus. All out communicators are compatible with Yokogawa products as well as other products on the market.
Remote Indicators

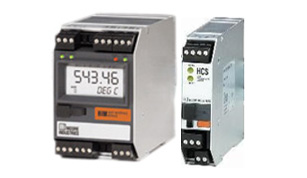

Yokogawa offers a range of loop powered and FOUNDATION Fieldbus remote indicators that can be used to locally monitor data from field instruments installed in difficult to access locations.
Pressure Calibrators

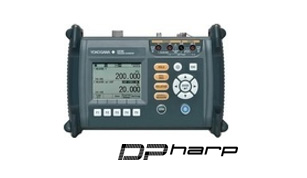

The Yokogawa CA700 Portable Pressure Calibrator uses the same DPharp sensor technology as our EJA-E and EJX-A series pressure transmitters. It provides an accurate and efficient calibration and verification tool for any pressure transmitter or other type of field device.
Communication Convertors
Yokogawa offers communication converters to convert secondary HART protocol variables to a 4 to 20 mA analog signal or all the HART variables to MODBUS RTU.
