Nâng cấp bộ điều khiển máy cấp than 196NT sang DT9 cho nhà máy nhiệt điện Vũng Áng 1

31/03/2022 - 758 lượt xem

Cung cấp, lắp đặt thay thế bộ điều khiển cũ hiện tại cho máy cấp than 196NT thành bộ điều khiển DT9 cho 6 máy cấp tổ máy 2

Upgrading DT-9 coal feeder controller for Vung Ang TPPVung Ang 1 TTP Overview

  • Investor:  PVN (Vietnam Oil and Gas Group)
  • EPC: LILAMA (Viet Nam)
  • Location: Ky Loi Commune, Ky Anh District, Ha Tinh Province
  • Capacity: 1200 MW (2 x 600 MW)
  • Technology: Coal Fired Boiler

Scope of work

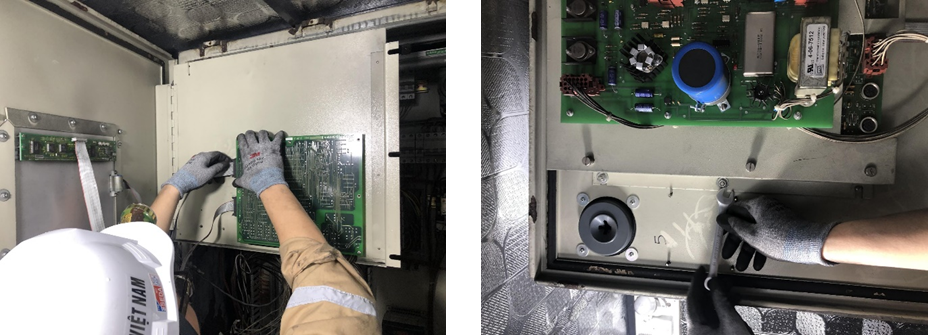

1/ Removing the old controller 196NT

  • Checking operation status of 196NT controller

  • Removing the exsiting controller 196NT
  • Removing LCD screen

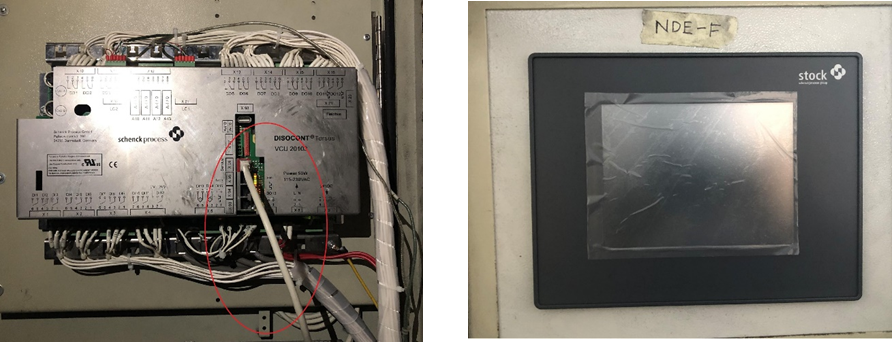

2/ Installing  the DISOCONT® Tersus feeder controller (DT-9)

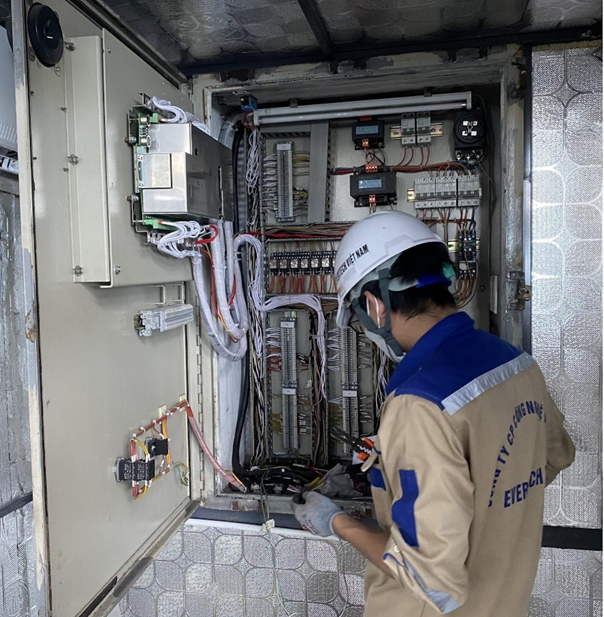

  • Mounting controller (DT-9) and wiring

  • Connecting to HMI

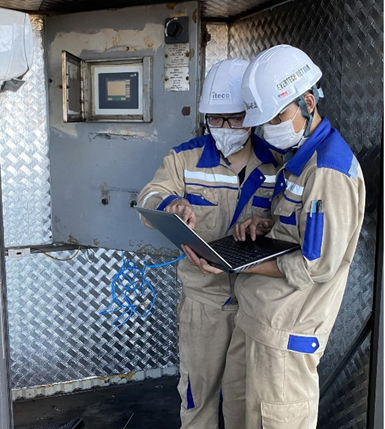

3/ Configuration, calibration and testing system

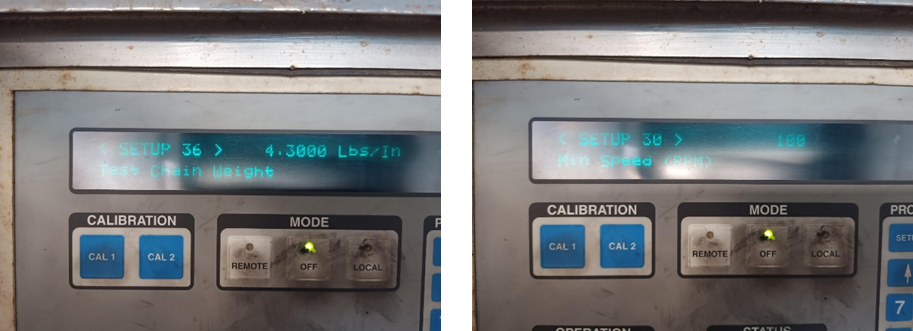

  • Configure operation parameters of coal feeder through Easy Server software

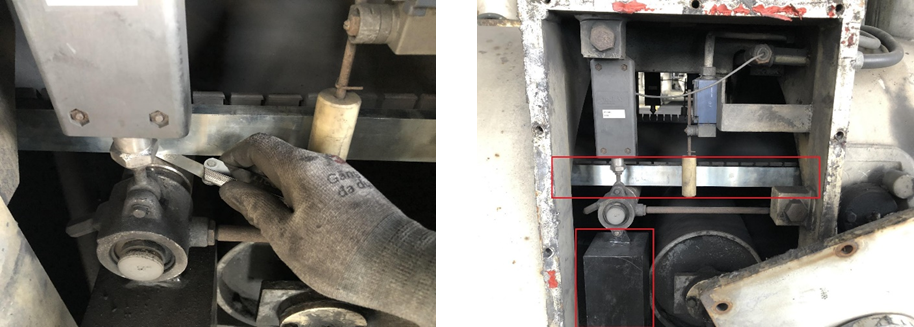

  • Calibration

  • Trim Analog Signal from Controller to DCS system
  • Testing after calibration
